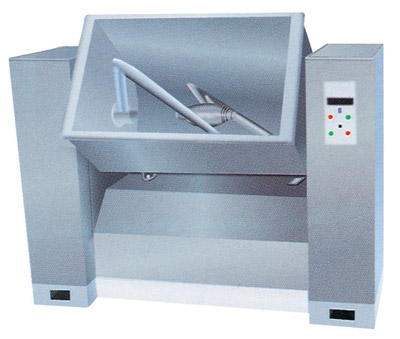

Name：CH Series Guttered Mixer
Keywords：CH Series Guttered Mixer
Description：CH type mixer is widely used for mixing powder or wet raw materials and can make the main and auxiliary raw materials with different proportion uniform. The places where contact the raw materials are made of stainless steel.The gap between blades is small and there is no dead corner.
Details
Product introduction
CH type mixer is widely used for mixing powder or wet raw materials and can make the main and auxiliary raw materials with different proportion uniform.
Characteristics
The places where contact the raw materials are made of stainless steel.The gap between blades is small and there is no dead corner. At the ends of stirring shaft,there are seal devices.It can prevent from the raw material leakage.
Material to be dried
It is widely used for pharmaceutical,chemical,foodstuf f and so on industries
Technical Parameter
| capacity（L） | 100 | 150 | 200 | 400 |
| power of motor（kw） | 2.2 | 3 | 3 | 5.5 |
| speed of stirring（rpm） | 24 | 24 | 24 | 24 |
| inclined（×） | 105 | 105 | 105 | 105 |
| weight（kg） | 350 | 500 | 650 | 1200 |
| overall dimensions（mm） | 1400×500×1000 | 1600×600×1100 | 1800×700×1200 | 2000×820×1460 |
The bulk density of material is made based on 0.6g/cm3, Please point out if it’s over .
