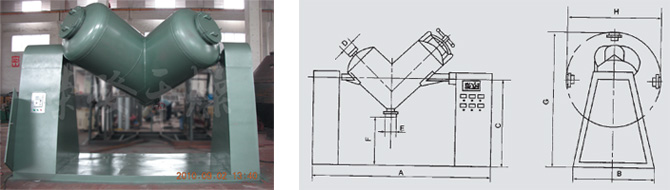

Name：ZKH (V) series mixer
Keywords：ZKH (V) series mixer,Drying Equipment, Drying Machinery
Description：The structure of mixing barrel is unique.The mixing effciency is high, no dead corner. The barrel is made of s tainless steel and its internal walls a repolished. The outside qppearance is beautiful. The mixing is uniform, with wide application.
Details
Characteristics
The structure of mixing barrel is unique.The mixing effciency is high, no dead corner. The barrel is made of s tainless steel and its internal walls a repolished. The outside qppearance is beautiful. The mixing is uniform, with wide application.
Material to be dried
The mixer is used for mixing the dry material grains in the medical,chemical,food,metallurgical and other industries.
| spec\item | total volume L |
material capcity L |
working capacity kg |
rotating speed rpm |
power kw |
weight kg |
| 0.05 | 50 | 25 | 15 | 25 | 0.55 | 500 |
| 0.15 | 150 | 75 | 45 | 20 | 0.75 | 650 |
| 0.3 | 300 | 150 | 90 | 20 | 1.1 | 820 |
| 0.5 | 500 | 250 | 150 | 18 | 1.5 | 1250 |
| 1 | 1000 | 500 | 300 | 15 | 3 | 1800 |
| 1.5 | 1500 | 750 | 450 | 12 | 4 | 2100 |
| 2 | 2000 | 1000 | 600 | 12 | 5.5 | 2450 |
| 3 | 3000 | 1500 | 900 | 9 | 5.5 | 2980 |
| 4 | 4000 | 2000 | 1200 | 9 | 7.5 | 3300 |
| 5 | 5000 | 2500 | 1500 | 8 | 7.5 | 3880 |
| 6 | 6000 | 3000 | 1800 | 8 | 11 | 4550 |
| 8 | 8000 | 4000 | 2400 | 6 | 15 | 5200 |
| 10 | 10000 | 5000 | 3000 | 6 | 18.5 | 6000 |
