Name:LPG Series High-Speed Centrifugal Spray Dryer

Keywords:LPG Series High-Speed Centrifugal Spray Dryer, Drying Equipment, Drying Machinery, Spray Dryer
Description:Spray drying is the technology most widely used in the liquid technology s haping and in the drying industry.The drying technology is most suitable for producing solid powder or particle products from liquid materials,such as:solution, emulsion, suspension and pumpable paste states.


Product introduction

  Spray drying is the technology most widely used in the liquid technology s haping and in the drying industry.The drying technology is most suitable for producing solid powder or particle products from liquid materials,such as:solution, emulsion, suspension and pumpable paste states,For this reason,when the particle s ize and distribution of the nal products,residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.

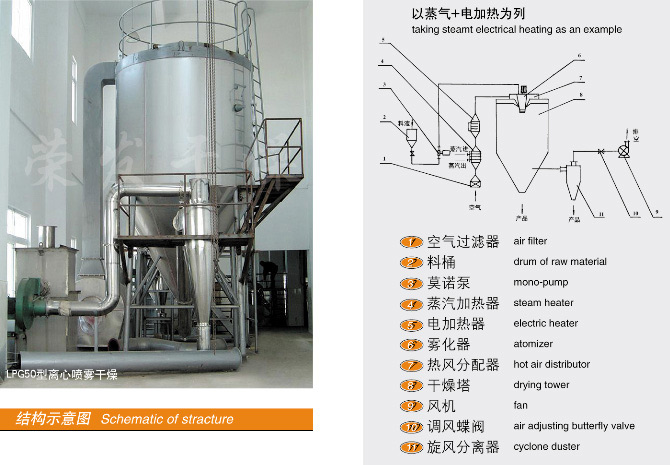

Working Principle
  After been ltered and heated the air enters into the air distrbutor on the top of the dryer.The hot air enters into the drying room in the spiral form and uniformly . Passing through the high-speed centrifugal sprayer on the top of the tower,the material liquid will rotate and be sprayed into the extremely ne mist liquid beads.Throug the very short time of contacting
the heat a ir,the materials can be dried into the nal products.The nal products will be discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower .

◎The drying speed is high when the material liquid is atomized,the surface area of the material will increase greatly.In the hot-air ow,95%-98% of water can be evaporated at a moment.The time of completing the drying is only several seconds. This is especially suitable for drying the heat sensitive materials.
◎ Its nal products own the good uniformity, ow ability & solubility. And the nal products are high in purity and good in quality .The producition procedures are simple and the operation and control are easy .The liquid with moisture contents of 40-60%(for special materials,the contents might be up to
90%).can be dried into the powder or particle products once a time. After the drying process, there is no need for smashing and sorting,so as to reduce the operation procedures in the production and to enhance the product purity.
◎The product particle diameters,looseness and water contents can be adjusted through changing the operation condition within a certain range. It is very convenient to carry out control and managment.

Material to be dried
  Sodium fluoride(potassium),alkaline dyestuf f and pigment, dyestuf f intermediate, compound fertilizer , formic silicic acid, catalyst, sulphuric acid agent, amino acid,white carbon and so on.
  AB,ABS emulsion,uric acid resin,phenolic aldehyde resin,urea-formaldehyde resin,formaldehyde resin,polythene,poly-chlotoprene and etc.
  Fatty milk powder ,protein,cocoa milk powder ,substitute milk powder ,egg white(yolk),
  oats,chicken juice,cof fee,instant dissoluble tea,seasoning meat,protein,soybean,peanut protein,hydrolysate and so forth.corn syrup, corn starch, glucose, pectin, malt sugar , sorbic acid potassium and etc.aluminium oxide,ceramic tile material,magnesium oxide,talcum and so on.

Technical Parameter

item parameter
5 25 50 150 200-2000
inlet temperature 140-350 automatic control
outlet temperature 80-90
amount of moisture
5 25 50 150 200-2000
drving form of
cuntrifugal nozzle
compressed air drive
mechanical drive
25000 18000 18000 15000 8000-15000
diameter of ato-
mizing disk(mm)
50 120 120 150 180-240
heat source electricity
steam+electricity,oil、oil fuel、hot air furnace
Max.power of
electric heater(kw)
9 36 72 99
overall eimensions
(L W H)(m)
1.8×0.93×2.2 3×2.7×4.26 3.5×3.5×4.8 5.5×4×7 affirm it in accordance with practical condition
recovery rate of
dry powder(%)

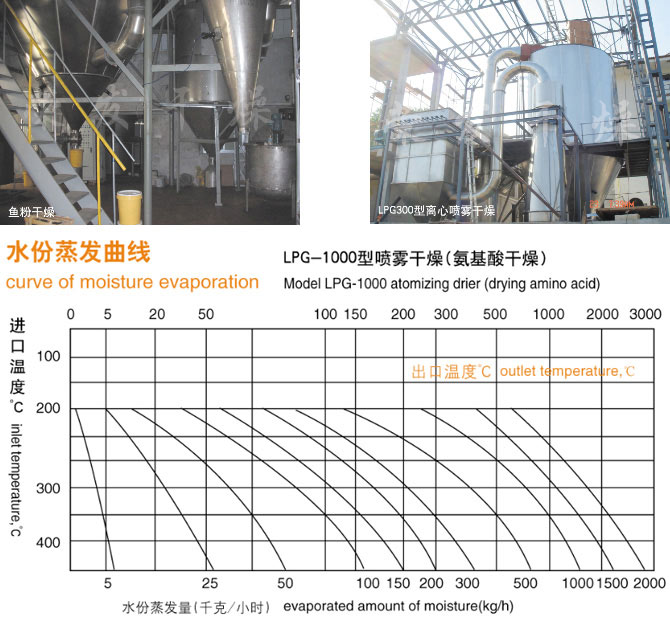

Note:The evaporated amount of water its related te characteristics of raw materials and the temperature of air in and air out.When the temperature of air out is 90oC,the evaporated curve of moisture is listed in above Fig(for reference when choose the Model).With renew procucts unceasingly,the related parameters will be exchanged,it does not announce in advance,pardon!

Attention to order
◎Liquid name and property: Solid contents(or water contents), viscosity , surface tension and PH value.
◎Dry powder density residual water contents allowed, particle size, and maximun temperature allowed.
◎Output: shift time daily .
◎Energy that can be supplied: steam pressure, electricity properly , fuel of coal, oil and natural gas .
◎Control requirement: whether or not the inlet and outlet temperatures should be controlled.
◎Powder collection requirement: whether it’s necessary to use cloth bag lter and the requirement of the environment of the exhausted gas .
◎Other special requirements.

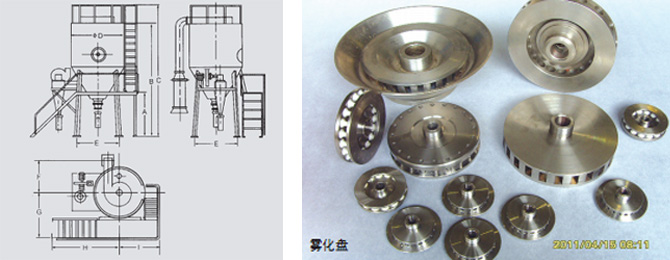

Technical Parameter

Size A B C D E1 E2 F G H I
LPG-25 1290 3410 4260 1800 1200 1200 1000 1700 1300 1550
LPG-50 1730 4245 5100 2133 1640 1640 1250 1750 1800 1600
LPG-100 2500 5300 6000 2560 2100 2100 1750 1930 2600 1780
LPG-150 2800 6000 7000 2860 2180 2180 1970 2080 3050 1960
LPG-200 2800 6600 7300 3200 2300 2300 2210 2250 3050 2100
LPG-300 2800 8000 8700 3700 2800 2800 2520 2400 3040 2250
