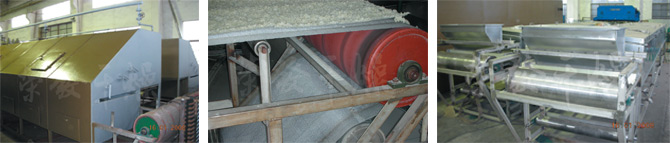

Name：Special Belt Dryer for Rice
Details
Working Principle
Wet rice is uniformly distributed on the uniformly moving stainless steel net belt by a special feeding machine (net belt is made of SUS304 stainless steel,and in line with food-grade requirements with long service life), the net belt carrying wet rice uniformly moves forward into the drying chamber driven by the frequency control motor . Drying chambers are composed of a number of drying units, each unit has independent hot a ir circulation and free adjustment and control of temperature, wet a ir is exhausted out by the exhausting fan(exhausting Moisture capacity can be adjusted and controlled), the hot air heated by heat exchanger goes through the wind distribution plate by the guidance of c irculation fan, and exchanges heat with wet rice and takes away the moisture in the rice. Drying chambers are equipped with a number of flipping devices so that a ll the rice can contact with the hot a ir uniformly and drying effect is improved. The finished rice a fter drying falls into rice collector continuously.
Characteristics
◎Dryer is made of stainless steel, in line with the export hygiene standards of food;
◎Reasonable and compact structure, reasonable occupying land, easy operation and maintenance;
◎Automatic control of temperature and speed, high heat ef ciency, environmental protection and energy saving.
Material to be dried
After cooking rice,brown rice after soaking,rice and other rice products.
Technical Parameter
| Type | DW1.6-Ⅰ (feeding) |
DW1.6-Ⅱ （middle ） |
DW1.6-Ⅲ （discharge） |
DW2-Ⅰ (feeding) |
DW2-Ⅱ （middle） |
DW2-Ⅲ （discharge） |
| belt width（m） | 1.6 | 1.6 | 1.6 | 2 | 2 | 2 |
| drying section lenght（m） | 10 | 10 | 8 | 10 | 10 | 8 |
| thickness of the material to be covered（mm） | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 |
| temperature(oC) | 50-90 | 50-90 | 50-90 | 50-90 | 50-90 | 50-90 |
| steam pressure(MPa) | 0.2-0.8 | 0.2-0.8 | 0.2-0.8 | 0.2-0.8 | 0.2-0.8 | 0.2-0.8 |
| drying time (h) | 0.2-1.2 | 0.2-1.2 | 0.2-1.2 | 0.2-1.2 | 0.2-1.2 | 0.2-1.2 |
| driver power（kw） | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
| Overall Dim（m） | 12×1.81×1.9 | 12×1.81×1.9 | 12×1.81×1.9 | 12×2.4×1.92 | 12×2.4×1.92 | 10×2.4×1.92 |
Note:1.feeding and middle and discharging dryers can be combined together to reach the requirements,
2.the height of dryer excludes that of fans and piping.
