Location: Home > PRODUCTS > Mixer Series Mixer Series Mixer Series
Details
Product introduction

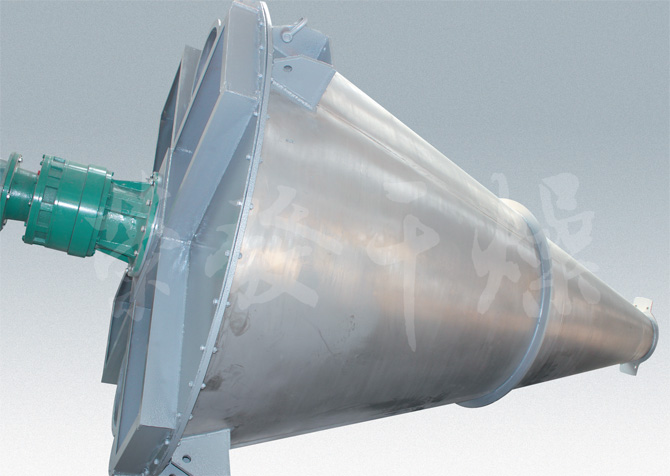

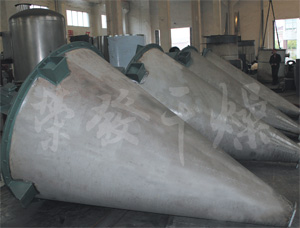

This machine is a new , efficient, high-precision mixing equipment, widely used in pharmaceutical, chemical and feed industries mixture of various powdered materials.
Characteristics
◎The machine has a motor and the rotation of cycloid reducer to complete, by two screws asymmetric mixing, stirring range of mat erials, mixing speed, on the proportion of the poor , mixed materials, large mixing is more appropriate .
◎Local material contact parts are stainless steel .
Technical Parameter
| specx | unit | WH0.3 | WH0.5 | WH1 | WH2 | WH4 | WH6 | WH10 |
| total volume | （m3） | 0.3 | 0.5 | 1 | 2 | 4 | 6 | 10 |
| feeding rate | 0.4-0.6 | |||||||
| diameter of materials to be mixed | （um） 40-3000 | |||||||
| operation condition | Ambient temperature,normal pressure,sealed to dust | |||||||
| production capacity p=1g/cm3 | （kg） | 180 | 300 | 600 | 1200 | 2400 | 3600 | 6000 |
| power | (kw) | 2.2 | 2.2 | 5.5 | 5.5 | 11 | 20.7 | 30.7 |
| time of mixing | (min) 4-10（special material to be determined by trial） | |||||||
| weight | (kg) | 500 | 1000 | 1200 | 1500 | 2800 | 3500 | 4500 |
