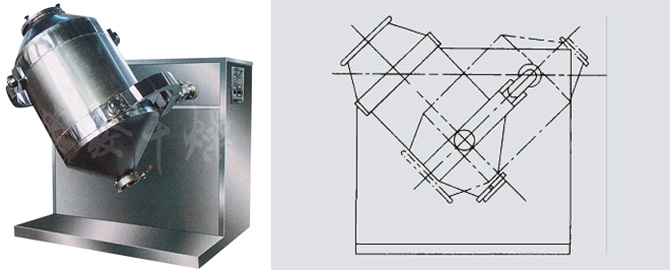

Name：SYH Series Three-dimensional Motion Mixer
Details
Characteristics
The barrel for charging the materials is driven by the driving shaft. The barrel body carries on the repeated level movement, rotation, turning and other complex movements so that the materials will carry out the three dimensions and complex movements along the barrel body so as to realize the various movements of the materials. Through disseminating, gathering, agglomerating and mixing to realize uniform mixing.
Material to be dried
◎The mixing barrel of the machine moves in multi-direction. For the materials,there is no centrifugal function, without the speci c gravity segregation and the layer division. For each of build-up phenomenon, there is the remarkable weight rate. The mixing rate is high. The machine is the desired one of various mixers at present.
◎The material charge rate of barrel is big. Maximum rate can be up to 90% (while normal mixer has only 40-50% of charge rate.). It is high in ef ciency and short in mixing time.
◎The barrel adopts arc shape connections and its well polished.
◎The machine is used for mixing the powder state and grain state materials to achieve high uniformity in the pharmaceutical, chemical, food, light-industry , electronic, mechanical, metallurgical, nation defense industries and other science and technology institutes.
Technical Parameter
| Spec | SYH-5 | SYH-15 | SYH-50 | SYH-100 | SYH-200 | SYH-400 | SYH-600 | SYH-800 | SYH-1000 | SYH-1200 | SYH-1500 | SYH-2000 |
| volume of barrel(L) | 5 | 15 | 50 | 100 | 200 | 400 | 600 | 800 | 1000 | 1200 | 1500 | 2000 |
| charge volume(L) | 4.5 | 13.5 | 45 | 90 | 180 | 360 | 540 | 720 | 900 | 1080 | 1350 | 1800 |
| charge weight(kg) | 1.5-2.7 | 4-8.1 | 15-27 | 30-54 | 50-108 | 100-216 | 150-324 | 200-432 | 250-540 | 300-648 | 400-810 | 500-1080 |
| rotation speed of main shaft(r/min) | 0-20 | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-13 | 0-10 | 0-10 | 0-9 | 0-9 | 0-8 |
| motor power（kw） | 0.25 | 0.37 | 1.1 | 1.5 | 2.5 | 4 | 5.5 | 7.5 | 11 | 11 | 15 | 18.5 |
| size L×W×H（mm） | 600 ×1000 ×1000 |
800 ×1200 ×1000 |
1150 ×1400 ×1000 |
1250 ×1800 ×1550 |
1450 ×2000 ×1550 |
1650 ×2200 ×1550 |
1850 ×2500 ×1750 |
2100 ×2650 ×2000 |
2150 ×2800 ×2100 |
2000 ×3000 ×2260 |
2300 ×3200 ×2500 |
2500 ×3500 ×2800 |
| weight（kg） | 100 | 200 | 300 | 800 | 1200 | 1200 | 1500 | 1700 | 1800 | 2000 | 2400 | 3000 |
The bulk density of material is made based on 0.6g/cm3, Please point out if it’s over .
