Name：TJG Fixed Material-lifting And Feeding Machine
Keywords：TJG Series Fixed Material-lifting And Feeding Machine, Material-lifting And Feeding Machine, Feeding Machine
Description：Model TJG fixed material lifting and feeding machine consists of two parts,i.e. The lifting machine and base, the lifting machine is composed of the rack,hydraulic lifting system and the hoopper-turning mechanism. in operation,the material tanl and the hopper of the lifting machine are to be hold toghther first.
Details
General Descriptions
Model TJG fixed material lifting and feeding machine consists of two parts,i.e. The lifting machine and base, the lifting machine is composed of the rack,hydraulic lifting system and the hoopper-turning mechanism. in operation,the material tanl and the hopper of the lifting machine are to be hold toghther first, After starting the control lever for lijting, the hopper and the tanl will be lifted together. After starting the control lever for turning , the material tank will turn 180 degrees to a position with the bottom of the tank upward, By using the butter y valve on the hopper for material discharge, the material can be easily fed into the required technological eqipment.

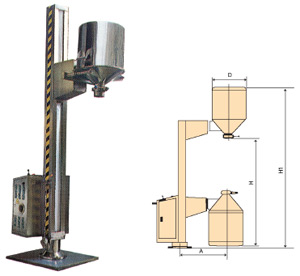

Technical Parameter
| Model&specs\Parameter | H | A | D | H1 |
| TJG-50 | 2050 | 650 | Φ485 | 2900 |
| TJG-100 | 2050 | 750 | Φ590 | 2900 |
Technical Parameter

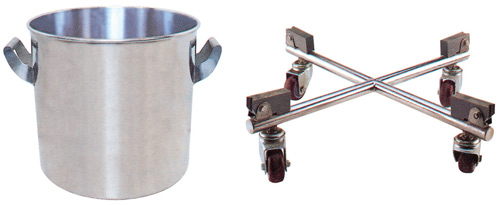

| Name | Volume（kg） | Specification （dia×high）(mm) |
Wall Thichness （mm） |
| Material tank | 50 | Φ485×460 | 0.8 |
| 100 | Φ590×550 | 0.8 | |
| Special trolley for material tank | 50-100 | Φ500×600 |
