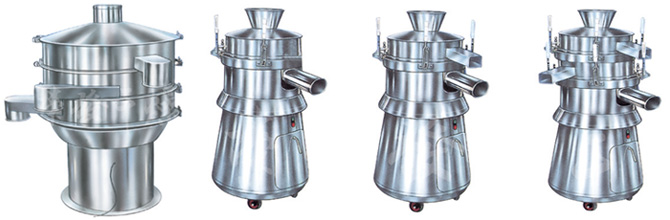

Name：ZS Series Circular Vibrating Sieve
Keywords：ZS Series Circular Vibrating Sieve,Vibrating Sieve,Drying Equipment, Drying Machinery
Description：The machine consist of hopper , vibrating chamber , couple and motor . There are eccentric wheel,rubber software, main shaft and shaft-bearing in the vibration chamber .The adjustable eccentric hammer is driven to the center line through the motor , cause centrifuged force under the state of unbalance and so that the materials from regular eddy .
Details
General Descriptions
The machine consist of hopper , vibrating chamber , couple and motor . There are eccentric wheel,rubber software, main shaft and shaft-bearing in the vibration chamber .The adjustable eccentric hammer is driven to the center line through the motor , cause centrifuged force under the state of unbalance and so that the materials from regular eddy . The amplitude of the hammer may be adjusted according to the property of material and the mesh screen.It is compact in structure, small in volume,thightness dust free, noise-free, high output,low in energy consumption, easy to move and easy to maintain.
Technical Parameter
| Spec | ZS-350 | ZS-515 | ZS-650 | ZS-800 | ZS-1000 | ZS-1500 |
| capacity(kg/h) | 40-500 | 60-600 | 80-800 | 150-1200 | 300-2000 | 350-2800 |
| meshes | 12-1200 | 12-200 | 12-200 | 12-200 | 5-325 | 5-325 |
| power(kw) | 0.55 | 0.55 | 0.55 | 0.75 | 1.5 | 2.2 |
| speed(rpm) | 1380 | 1370 | 1370 | 1500 | 1500 | 1500 |
| overall dimension(mm) | 540×540×1060 | 710×710×1290 | 880×880×1350 | 1000×1000×1000 | 1100×1100×1200 | 1600×1600×1200 |
| weight(kg) | 100 | 180 | 250 | 300 | 350 | 400 |
